Client: Various commercial & private clients
Project: Frameless glass balustrade
Location: Across the UK
Duration: N/A
Completed: N/A
Details: We have supplied and installed frameless glass balustrade systems to many commercial and public buildings as well as numerous private clients. Below are just a few examples of our recently completed projects.
The frameless glass balustrade system uses an aluminium U-channel which can either be base or side fixed with stainless steel cladding fixed to the sides for the final finish, wedge packs or grips secure the glass in place, a rubber gasket and stainless steel slotted tube top rail can then be added.
Key points:

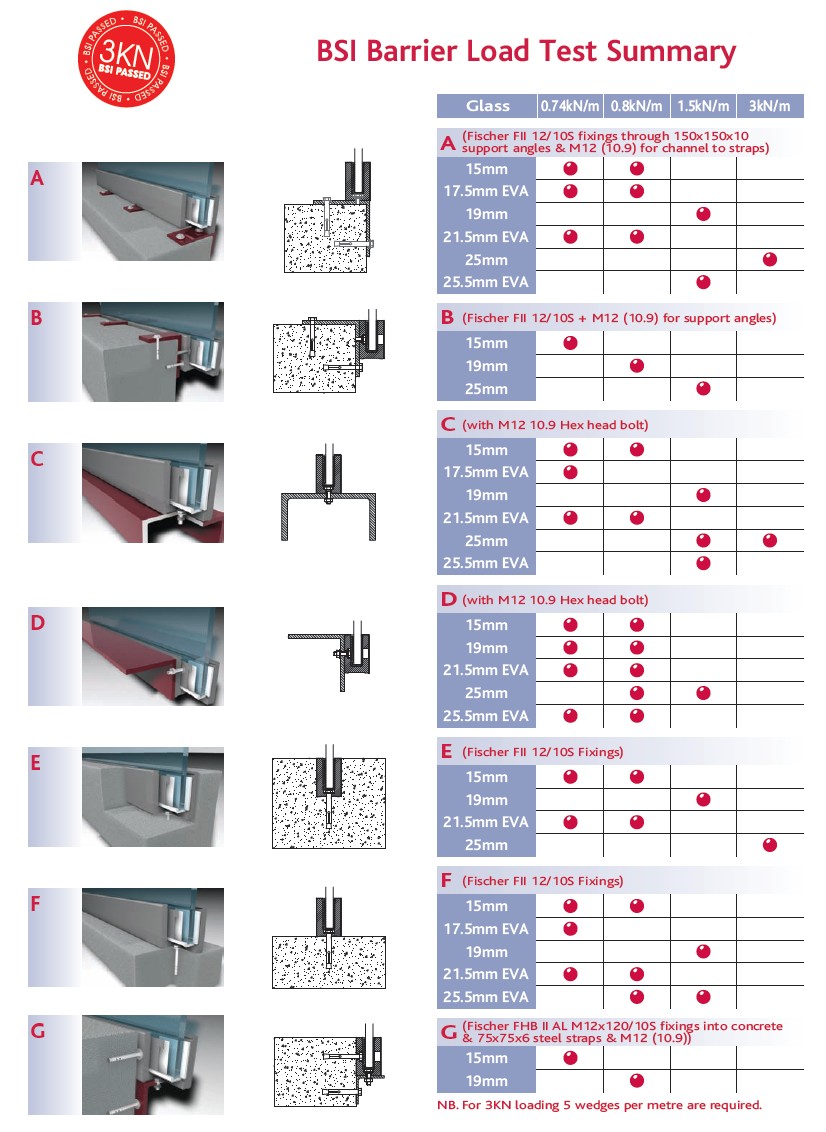

- Secure & Tested (Grip 1.5kN/m loading / Wedges 3 kN/m loading – to BS 6180)
- Ready-to-install modular balustrade kit
- Modern frameless design
- ‘Dry’ system using grips or wedge packs – no cement required
- Glass sizes from 9-25.5mm toughened, toughened laminated
- Professional installation service available
Scope of applications:
- Commercial, residential & public buildings
- Indoor and outdoor applications (stainless steel grade 316 for outdoor)
- Balconies, terraces, landings, staircases

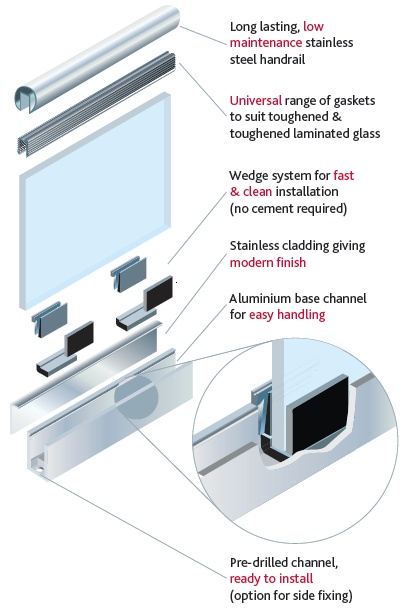

Components

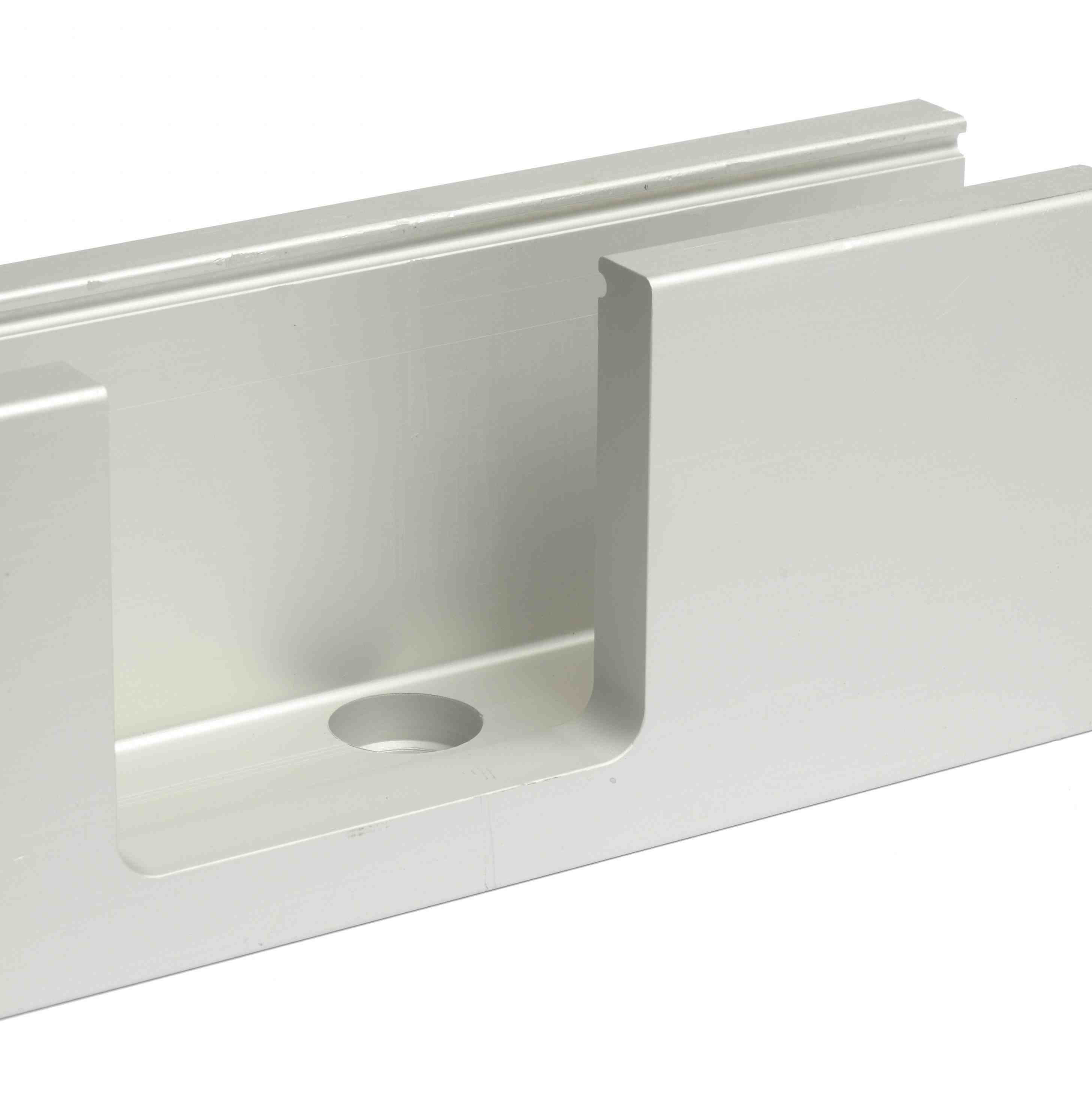

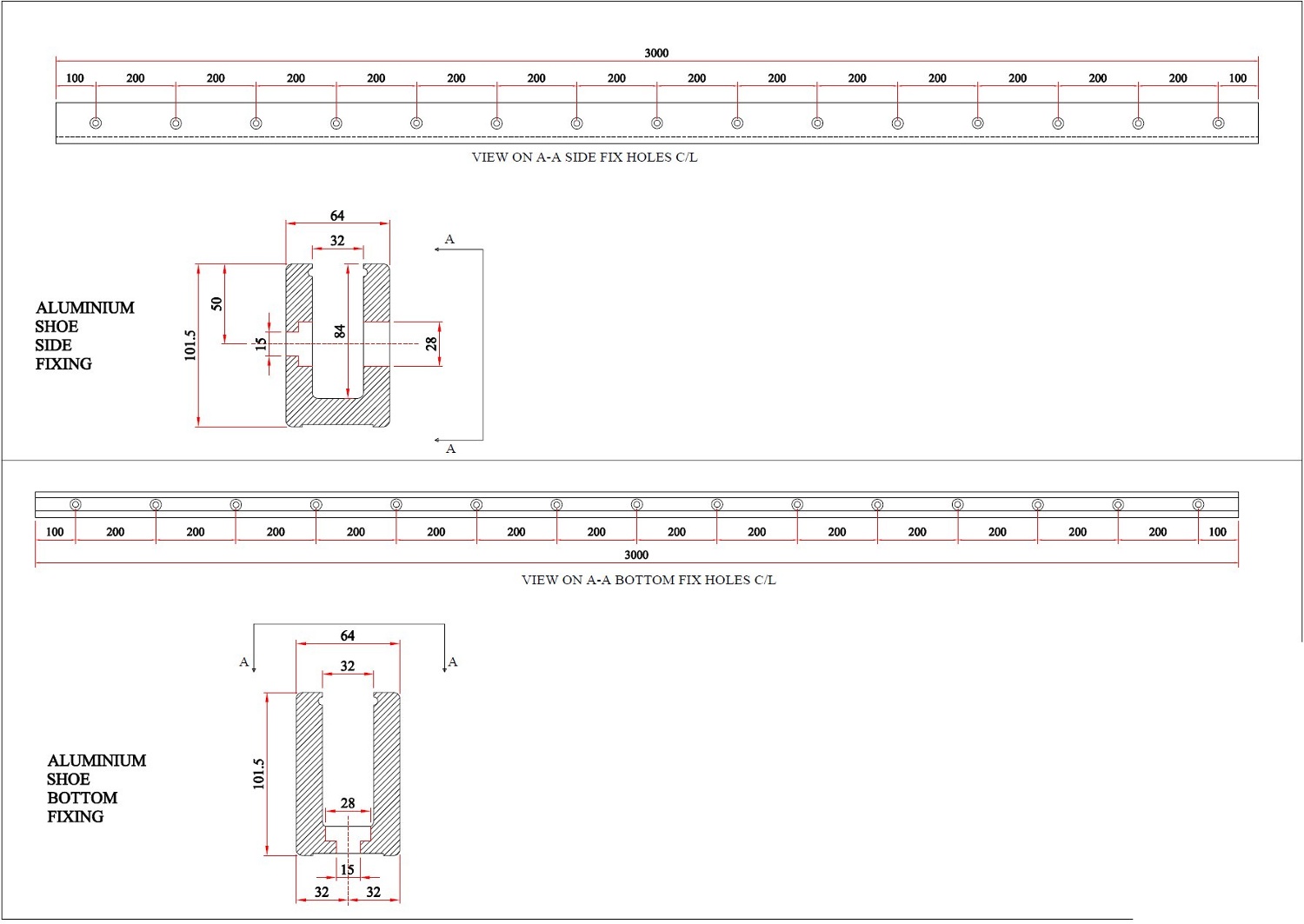

- Aluminium U-channel, base/top or side fixed

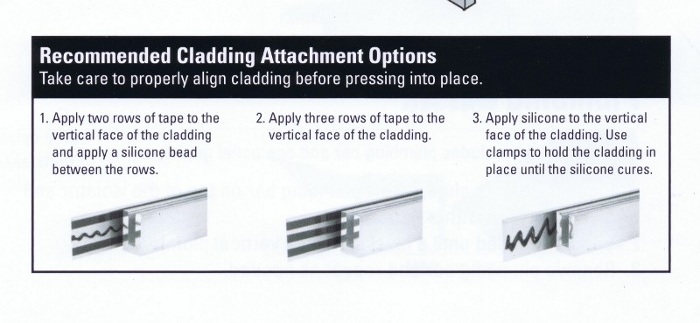

- Stainless steel cladding
- Grips
- Wedge packs
- Stainless steel slotted tube top rail
- Rubber gasket
- Toughened/heat soaked/laminated glass infill panels
Grip
NEW! We have now introduced our Grip system!

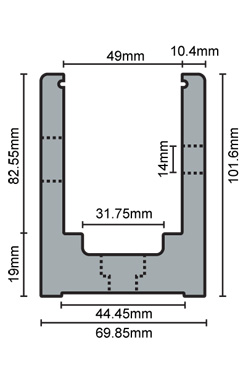

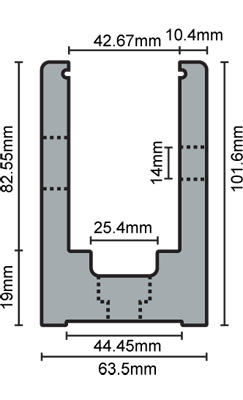

The Grip system has been designed to save time and effort on installation compared to other systems, including wedge packs. All you need is an allen key for installation and removal. The image below shows the simple process involved; a plastic packer is inserted to one side of the glass, the grip the other. Using an allen key, tighten the fixing to securely grip the glass in place. Glass sizes range from 9-21.5mm, however for a structural requirement (such as a balcony), we would suggest a minimum glass thickness of 15mm. The system has been proven up to a 1.5kN loading.
Please contact us for more information and pricing.
Wedge
Our experienced installations teams have traveled across the UK installing frameless glass balustrade ensuring a fast and reliable service.
Comments from our frameless glass balustrade clients;
“Just a quick note to say how impressed I was with your 2 fitters yesterday, the products are superb and the guys were fantastic.”
“You supplied to us in 2 weeks what we’ve been waiting for our local contact to supply for the last six months… so I’ll definitely be recommending you to my other design/architect friends”.
As well as the frameless glass balustrade system with aluminium U-channel, we can supply glass adaptors or point fixings which mean you can fix the glass straight into the treads or walls to also offer a frameless look.
We can also supply many stainless steel components, please download a stainless steel components brochure – ‘Stainless steel components’ (ZIP, 4MB)
If you are interested in our frameless glass balustrade, please contact us for further details.

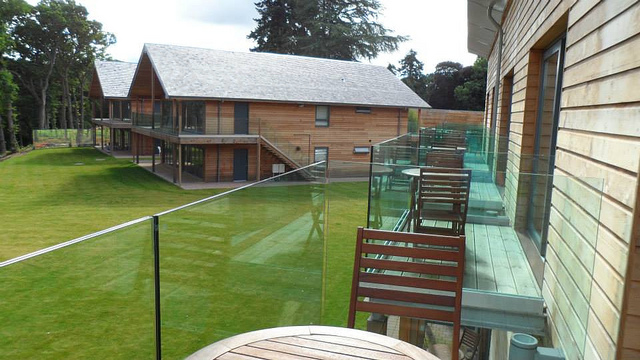

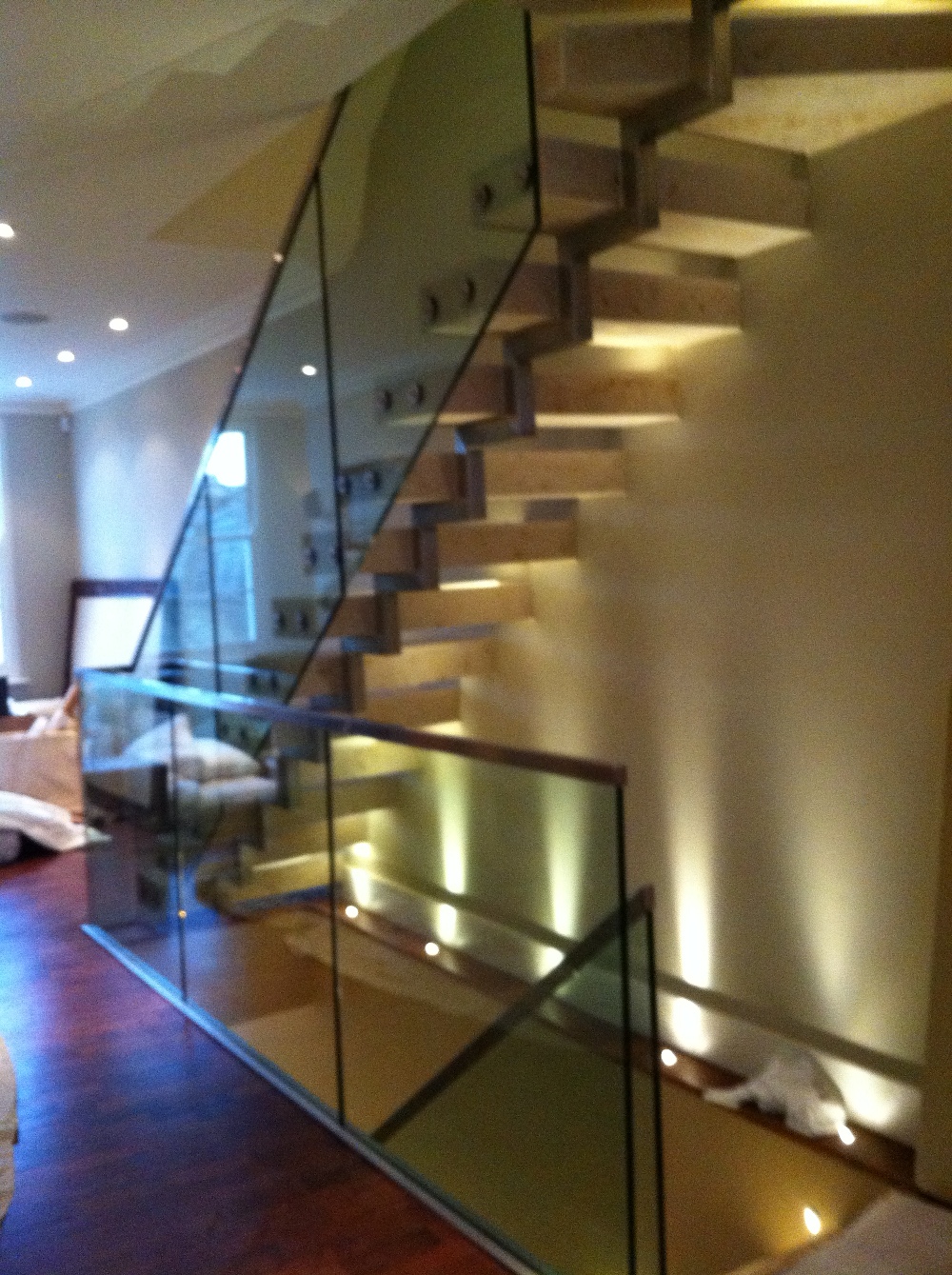

Frameless Glass Balustrade Gallery
If you require any further information, please do not hesitate to get in contact. We’re happy to help.
